Home › Forums › SYSTEM › Extra point in constellation point in OOFDM › Reply To: Extra point in constellation point in OOFDM

October 13, 2015 at 10:41 am #26391
Profile Photo
Gokul Boro .
Participant

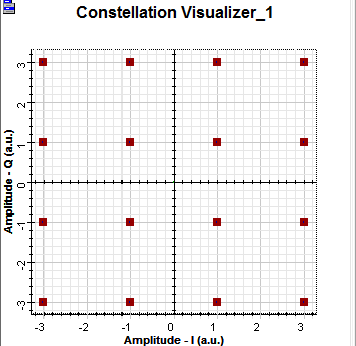

Hi Damien, I tried simulating the .osd file that you modified. But the constellation seems to be ideal as was before except for the additional point. The image is attached. I have modified nothing in the .osd file you have attached. If you got the constellation as that of the image you have attached attach from the system you have attach then please inform here. Alistu got a different constellation from the system I attached and now I am getting a different one from your design (constellation if the parameters were not modified for getting above image of constellation.)
thank you.

Attachments:

  1. IDEAL.png
